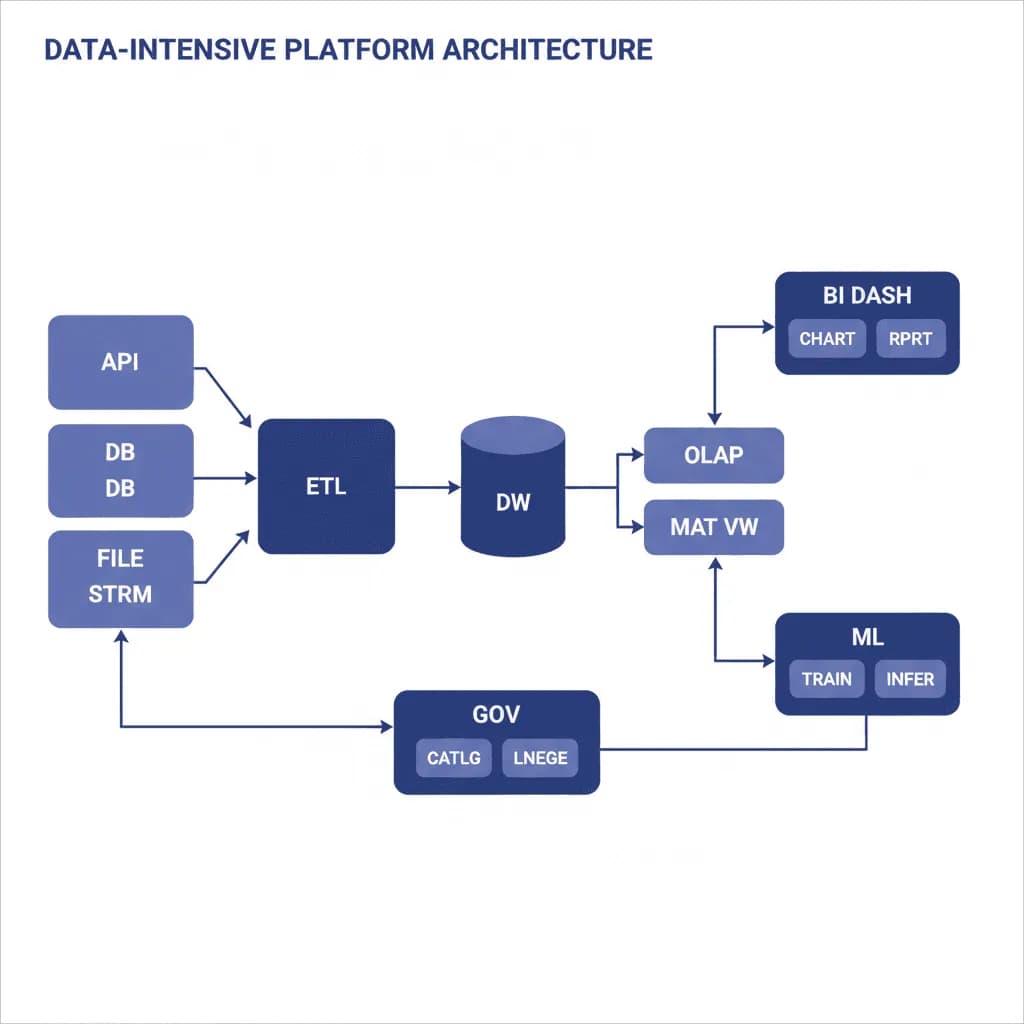

Data-Intensive Platform Architecture

MicrocosmWorks implements tiered storage architectures where hot data lives in fast query engines like ClickHouse or Apache Druid, warm data moves to columnar formats in object storage queried via Trino or Athena, and cold data archives to cost-optimized storage classes with lifecycle policies. We use streaming ingestion with backpressure controls that prevent upstream systems from overwhelming the platform, combined with intelligent partitioning and compaction strategies that keep query performance consistent as data volume grows. This tiered approach typically reduces storage costs by 70-85% compared to keeping all data in a single high-performance tier.

MicrocosmWorks builds lambda or kappa architectures depending on your consistency requirements—lambda uses separate batch and streaming pipelines that merge at the serving layer, while kappa processes everything as a stream and materializes views for different query patterns. For most clients, we recommend a unified streaming approach with Apache Flink or Spark Structured Streaming that writes to both a real-time serving store (Redis, Druid) and a batch-optimized lakehouse (Delta Lake, Apache Iceberg). This eliminates the dual-pipeline maintenance burden of traditional lambda architectures while supporting both sub-second dashboard queries and multi-hour analytical workloads.

MicrocosmWorks implements data quality as a first-class pipeline stage using tools like Great Expectations or dbt tests that validate schema conformance, null rates, value distributions, referential integrity, and freshness at every transformation boundary. We build data quality dashboards that surface issues immediately and automated circuit breakers that halt downstream processing when upstream data quality drops below acceptable thresholds, preventing bad data from propagating through the platform. Every data contract between producers and consumers is codified in version-controlled schemas with SLOs for completeness, accuracy, and timeliness.

MicrocosmWorks recommends a platform team of 3-5 engineers who own the shared infrastructure—ingestion pipelines, compute clusters, storage layers, and query engines—while domain teams own their specific data models, transformations, and quality rules as self-service consumers of the platform. We help clients establish a data engineering guild model with shared standards for naming conventions, testing practices, and deployment patterns that prevent the platform from becoming a patchwork of inconsistent implementations. For organizations not ready to build a full platform team, MicrocosmWorks provides managed platform engineering at $15-$45/hr with knowledge transfer built into the engagement.

MicrocosmWorks runs dual-write migrations where new data flows to both the legacy warehouse and the modern platform simultaneously, with automated reconciliation jobs that compare query results between both systems to verify correctness before cutting over consumers. We migrate reports and dashboards in priority order, starting with the most-accessed assets and working through the long tail, with each migration validated by the business owners who use those reports daily. This approach typically takes 3-6 months for mid-size data platforms and ensures zero disruption to business decision-making throughout the migration.
